Loading Shader (.hlsl) files

If you are about to make your own effects, use Fx Editor (.srfx). Write GLSL in a browser and export a .srfx, and you get an effect node that works on both Windows and Mac. The direct .hlsl placement explained on this page is a different, older mechanism.

.hlsl files are treated as one kind of video material. Rather than being nodes, they line up in the MediaBrowser just like videos and images, and you put them on a layer to play them.

The difference between the two mechanisms

	.hlsl (this page)	.srfx (Fx Editor)
What it becomes	Material you play on a layer	An effect node (takes video in and processes it)
Language	HLSL	GLSL (the Shadertoy dialect)
OSes it runs on	Windows only	Windows / Mac
Where it goes	Source/Shader	CustomFx
Parameters	Cannot be added	Writing a uniform gives the node a port

.hlsl only works on the Windows build. The mechanism that compiles HLSL at runtime is Windows-only, so .hlsl material cannot be played on the macOS build.

Where to put it

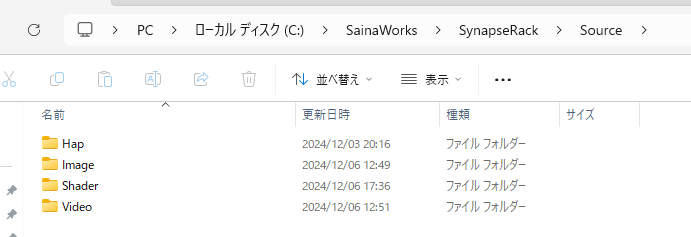

<Source Directory>/SainaWorks/SynapseRack/Source/Shader/<any folder name>/○○.hlsl

The Windows default is C:/SainaWorks/SynapseRack/Source/Shader/. The position of the parent folder can be changed in Specifying the path for loading VJ clips (Source Directory).

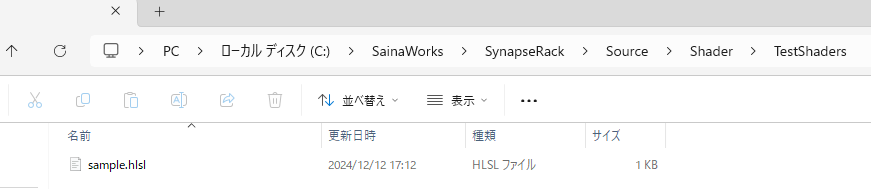

Put one folder in between. A file placed directly underneath, as in Source/Shader/○○.hlsl, is not picked up. Always put it inside a folder, as in Source/Shader/MyShaders/○○.hlsl. Nesting further inside that folder is fine.

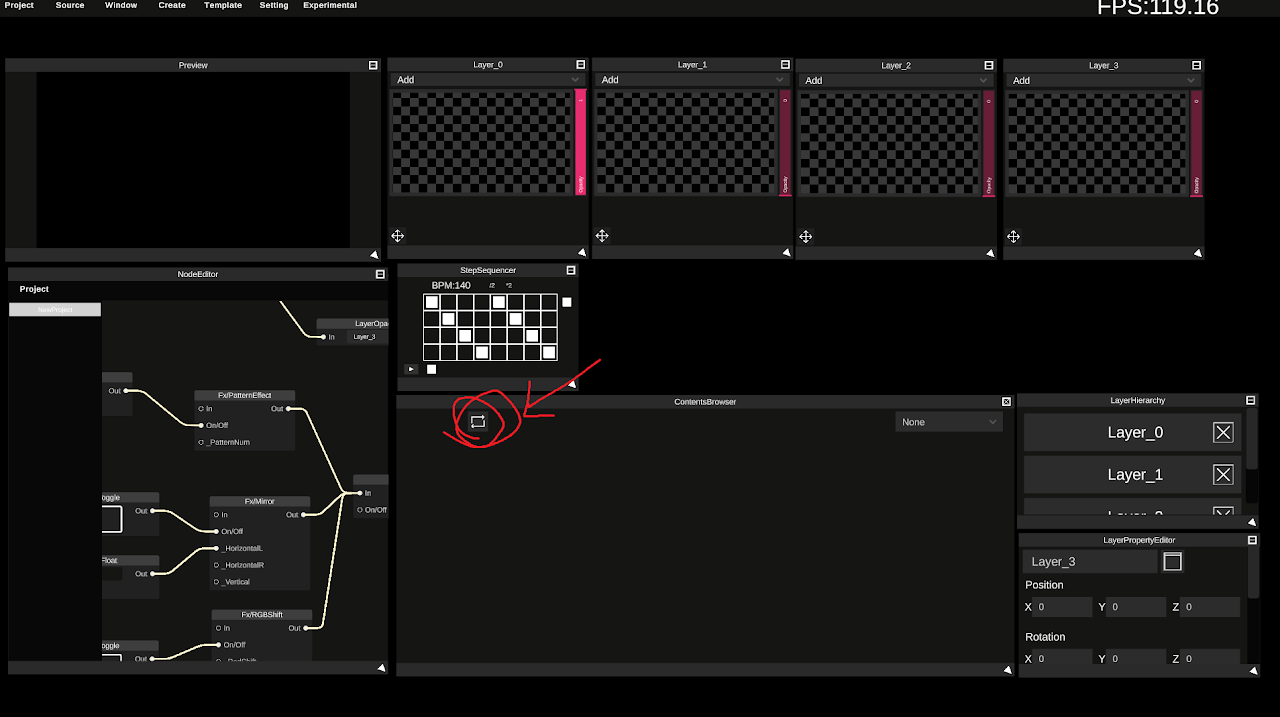

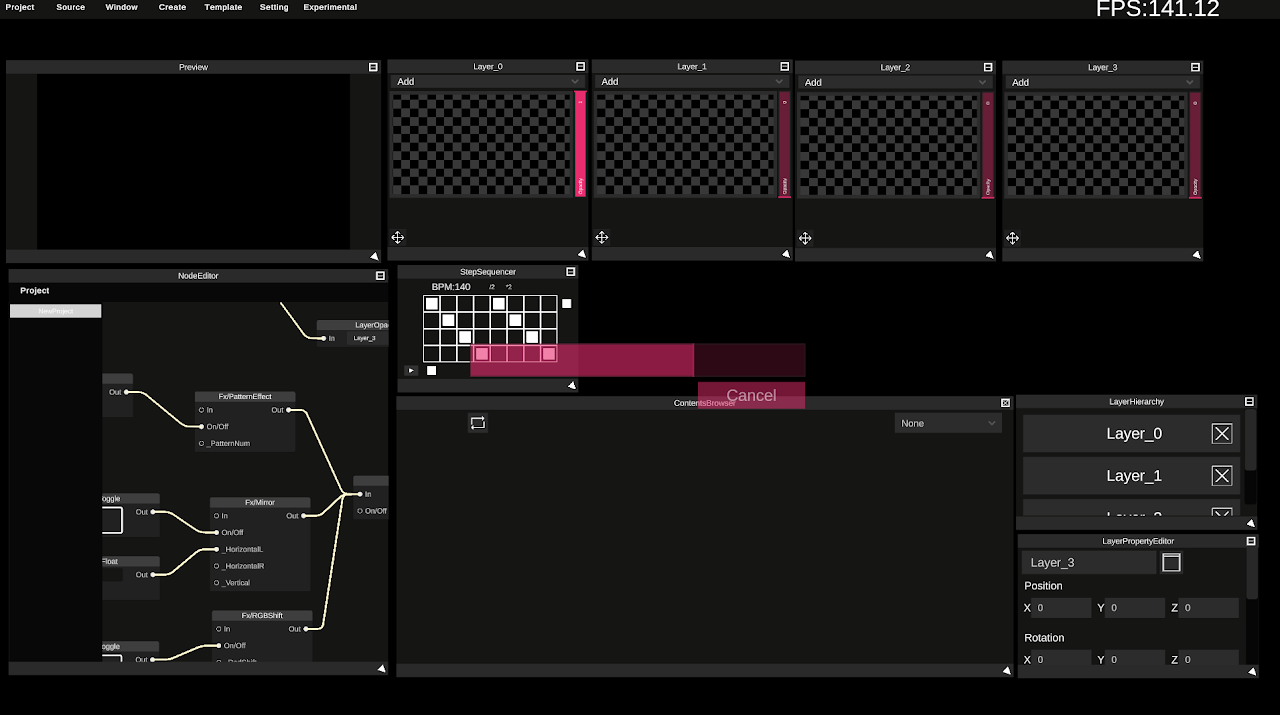

The current version has no way to import a new .hlsl. The bulk load that used to be in the menu (Source → Load Source Files) is gone, and drag & drop onto the MediaBrowser does not import .hlsl either. .hlsl files imported in an earlier version remain in the MediaBrowser and can still be played. If you are writing something new, use .srfx.

How to write it

The contents of the file is a single fragment shader function. You do not write a shader declaration around the whole thing.

cbuffer Params : register(b0)
{
    float2 resolution;   // 描画先の幅・高さ（ピクセル）
    float  time;         // アプリ起動からの経過秒
    float  globalBPM;    // Global Tempo のBPM
    float  param0;
    float  param1;
    float  param2;
    float  param3;
};

float4 Frag(VsOutput input) : SV_TARGET
{
    float2 uv = input.uv;
    float  v  = sin(uv.x * 20.0 + time * 3.0) * 0.5 + 0.5;
    return float4(v, uv.y, 1.0 - v, 1.0);
}

The rules

Item	Content
Function name	Frag, returning float4, with the SV_TARGET semantic
Argument type	VsOutput (you do not define it yourself. It has pos (SV_POSITION) and uv (TEXCOORD0))
UV	input.uv runs 0 to 1
Constant buffer	Passed in at register(b0) in the order in the table above. Changing the order shifts the values
#include	Expanded relative to the StreamingAssets folder

param0 to param3 are reserved slots. The current UI has nowhere to operate these four. Declare them anyway so that the layout lines up.

There is no input texture. .hlsl material is on the “make your own picture” side. When you want to take video in and process it, use an effect node from Fx Editor (.srfx).

When compilation fails

The screen becomes solid magenta (pink). If it is magenta rather than pure black, it is a syntax error in the shader.

Using it

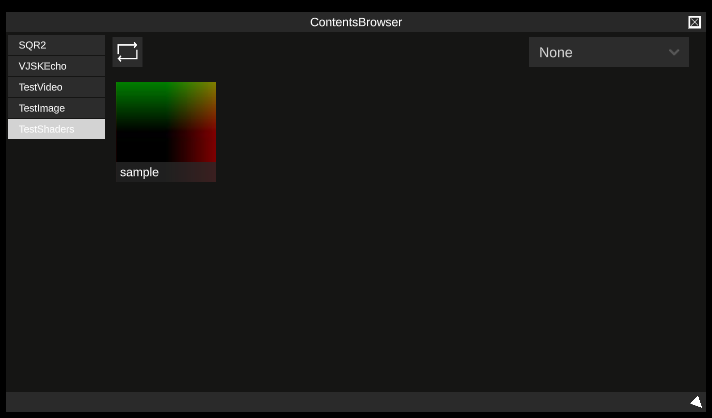

It lines up in the MediaBrowser as a clip with a thumbnail, just like a video or an image. Drag it to a layer, or select a layer and click it, and playback starts.

resolution receives that layer’s resolution, so changing the output resolution makes the shader’s drawing size follow. globalBPM receives the value of Global Tempo as it is, so you can write movement that syncs to the beat.

Related

• Fx Editor (Custom effects, .srfx) — the recommended route today. Make your own effect nodes that run on both OSes
• Specifying the path for loading VJ clips (Source Directory) — changing the parent of the Source/Shader folder
• Loading video and image files — importing video and image material
• Global Tempo — the value that goes into globalBPM
